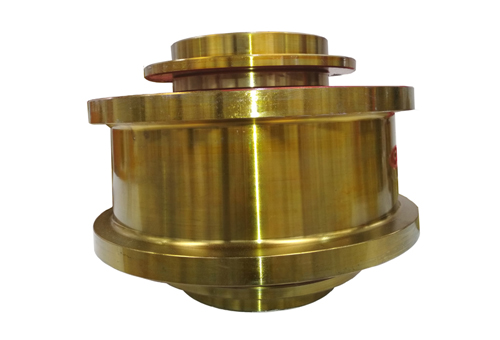

Forged wheel for overhead crane and gantry crane
  • Forged wheel for overhead crane and gantry crane
  • Forged wheel for overhead crane and gantry crane
  • Forged wheel for overhead crane and gantry crane
  • Forged wheel for overhead crane and gantry crane

Forged wheel for overhead crane and gantry crane

 Model: CL
Size: φ500 ~φ900mm
Material :  4140、SSW-Q1R、CL60、C60
Processing craft:  Forging
Appliance:  Crane, port machinery, train, coke pushing machine, crane, salvage crane, mining, metallurgy and other fields.

Get Quotation
▲

DESCRIPTION

 Overview:
The crane wheel is a key component of the wheel block and is mainly used for the crane rail travel mechanism.
The wheel is a device used to support the crane and the load and to cause the crane to travel back and forth on the track.

Advantage:
1,  Heat treatment:  quenching and tempering
2,  Detection technology :  ultrasonic flaw detection
3,  Bearing:  SKF, NSK, LYC, HRB
4,  Warranty: 24 months.

Technical parameter:

Wheel
D/mm		 Rail type Working grade Running speed   V/m·min^-1
＜60 60～90 >90～120
Q/G
1.1 0.5 0.15 1.1 0.5 0.15 1.1 0.5 0.15
Crane wheel 500 P38 Light 206 197 180 187 179 164 172 164 150
500 P38 Middle 172 164 150 156 150 137 144 137 125
500 P38 Heavy 147 141 129 134 128 117 123 117 107
500 P38 Extra heavy 129 123 113 117 112 103 107 103 94
500 QU70 Light 260 243 227 236 226 206 217 207 190
500 QU70 Middle 217 207 190 197 189 172 181 173 159
500 QU70 Heavy 186 177 162 169 162 147 155 148 136
500 QU70 Extra heavy 163 155 142 148 141 129 136 129 116
600 P38 Light 246 235 215 224 214 195 206 196 180
600 P43 Middle 206 196 180 197 178 163 172 164 150
600 P38 Heavy 176 168 154 160 153 140 147 140 129
600 P43 Extra heavy 154 147 134 140 134 122 129 123 113
600 QU70 Light 320 305 279 292 278 254 267 255 233
600 QU70 Middle 267 255 233 244 232 212 223 213 194
600 QU70 Heavy 220 218 199 209 199 181 191 182 167
600 QU70 Extra heavy 200 191 174 183 174 153 167 159 140
700 P43 Light 280 268 245 255 244 223 234 224 204
700 P43 Middle 234 224 204 213 204 186 195 187 170
700 P43 Heavy 200 192 175 183 174 159 167 160 146
700 P43 Extra heavy 175 167 153 159 152 139 146 140 127
700 QU70 Light 386 368 336 352 335 306 322 307 280
700 QU70 Middle 322 307 280 294 280 256 269 256 234
700 QU70 Heavy 276 263 240 252 240 219 230 220 200
700 QU70 Extra heavy 242 230 210 220 210 191 201 192 175
800 QU70 Light 437 417 381 398 380 347 364 348 318
800 QU70 Middle 364 348 318 332 317 290 304 290 266
800 QU70 Heavy 312 298 272 284 272 248 260 249 227
800 QU70 Extra heavy 273 261 238 249 238 217 228 218 198
900 QU80 Light 505 481 440 460 437 400 422 402 368
900 QU80 Middle 422 402 368 384 365 334 352 336 307
900 QU80 Heavy 361 344 315 329 312 286 302 288 263
900 QU80 Extra heavy 316 301 275 288 273 250 264 251 230
