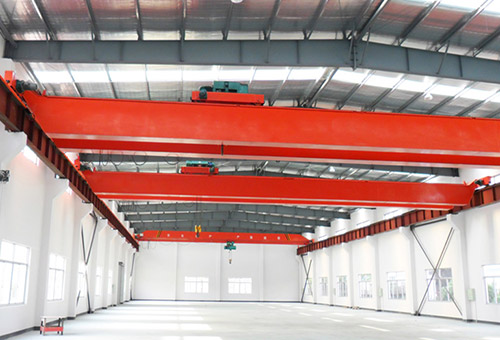

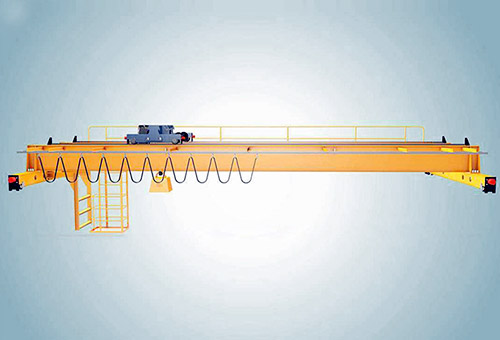

Double Beam Crane

Model: LH
Capacity: 5~32 ton
Span: 10~30 m
Lifting height: 6~ 30 m
Working class: A3~A5
Application: Workshop, warehouse, hydropower station

Get Quotation

▲

DESCRIPTION

Overview
Double girder electric hoist overhead crane is a kind of light duty crane which takes electric hoist as lifting mechanism, light weight, low cost, widely used.

Feature
1, Simple structure,Light weight, smooth running.
2, Easy to install and maintenance,
3, Low price.

Advantages
1, Top brand motor and gearbox,
2, Maintenance-free braking system,
3, Schneider electric components,
4, Forged wheel and hook
5, Warranty: 24 months

Technical data

Rated load/ton	5	10	16	20	32
Span/m	7.5-31.5
Lifting height/m	30
Working class	A3/1bM
Lifting speed/m/min	8	7	3.5	3.5	3
Trolley running speed/m/min	20	20	20	20	20
Crane running speed/m/min	20	20	20	20	20
Dead weight/t	5.7~25.4	7.2~26.5	8.3~28.2	11.3~31.5	15.5~35.5
Number of wheel	4	4	4	4	4
Max. wheel pressure/KN	51.5~124	81~178	110~225	133~256	167~275
Steel track recommended	P38	P38	P43	P43	P43
Power supply	3AC 220~480V 50/60Hz
